Sinclair ZX81 computer – Refurbished and Upgraded to 32K RAM and HRG Ready

£119.99

Thanks for looking at our Sinclair ZX81 computer – Refurbished and Upgraded to 32K RAM and HRG (Hi Res Graphics) Ready!

Sold out!

Description

Thanks for looking at our Sinclair ZX81 computer – Refurbished and Upgraded to 32K RAM and HRG (Hi Res Graphics) Ready!

Condition is Seller refurbished.

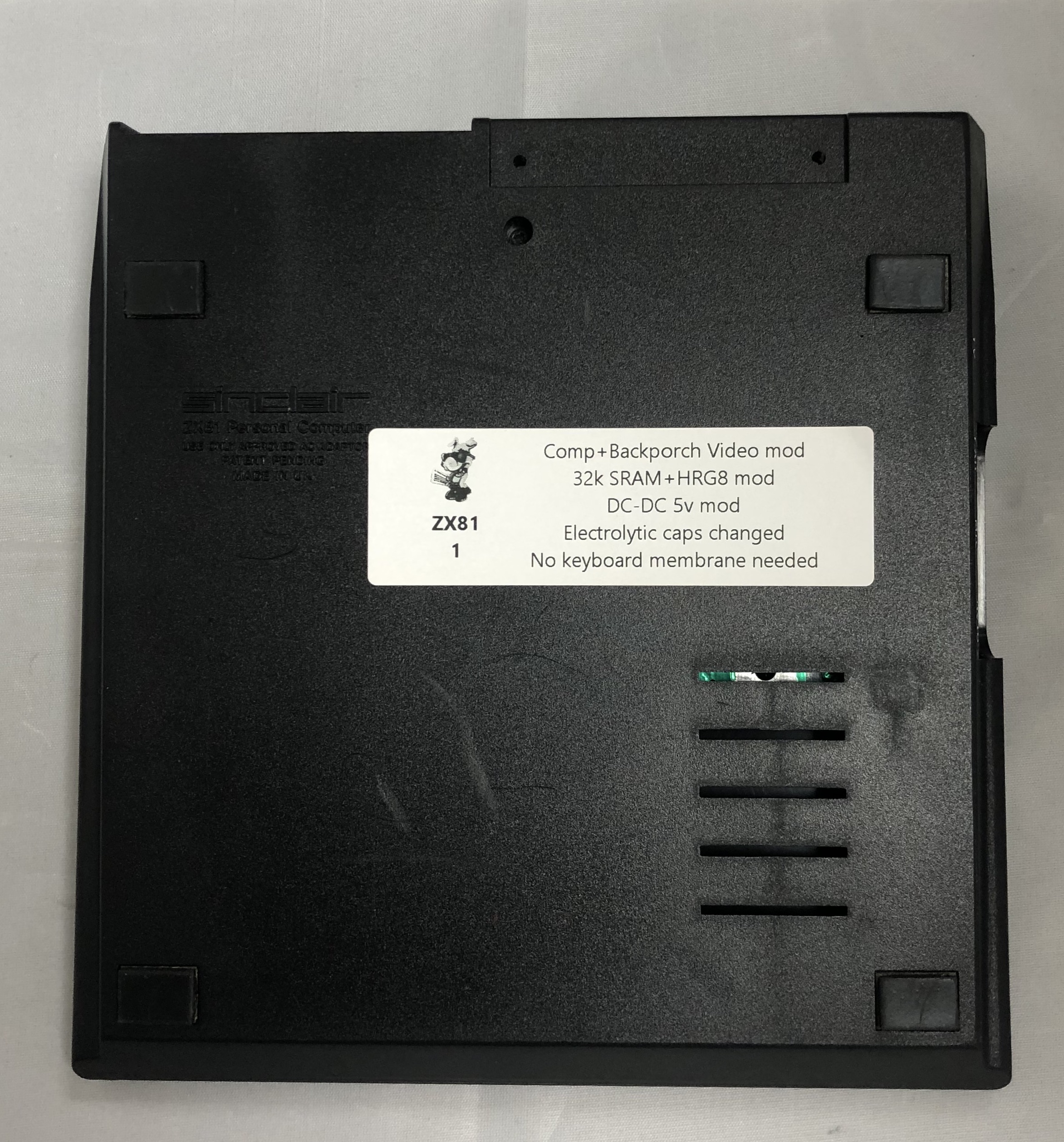

We’ve performed the following work on this little beast:

  • Replaced the 5 volt regulator with a DC-DC converter which consumes less current and runs much cooler – it means we could also remove the huge heatsink as it’s not needed.
  • Replaced the paltry 1K memory with a 32K SRAM chip using a custom PCB – now the ZX-81 has 32K RAM internally! No more RAM pack wobble – and you get to use hires graphics (HRG) as the custom PCB also enables that.
  • All electrolytic capacitors have been changed to make sure that the ZX-81 has a stable power supply.
  • The insides of the RF modulator have been swapped out for another custom PCB that gives the ZX-81 excellent composite video output, and produces the needed back porch to allow the ZX81 to give a crystal clear picture on modern TV’s – and it uses the same socket as the RF modulator used to so that we don’t have to modify the case at all.

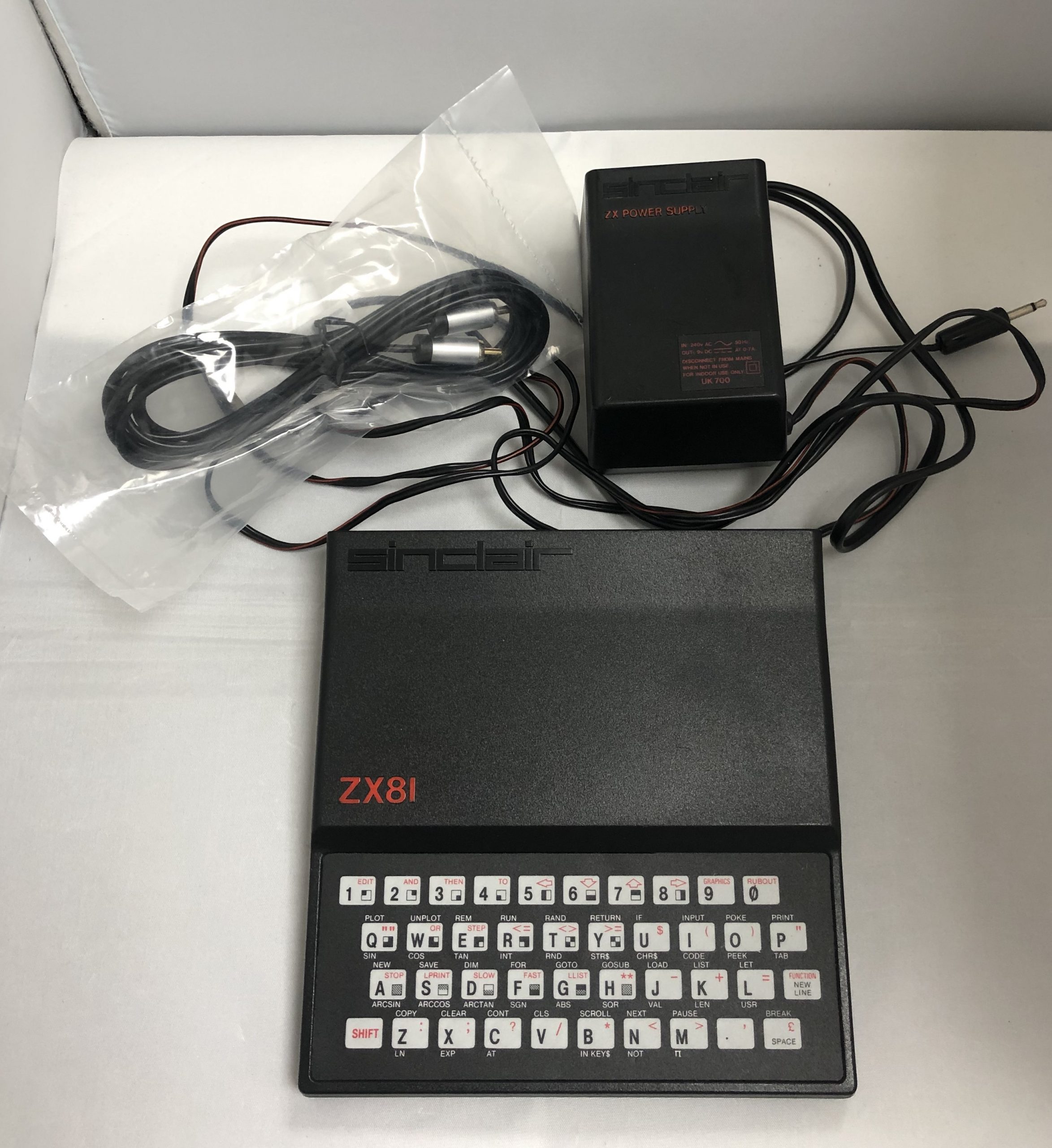

  • Phono lead supplied to connect the ZX81 to the Video input on your shiny new LCD TV
  • Comes with its original Sinclair ZX-81 power supply. The power supply has also had its electrolytic capacitors changed.

All in all, this is a well upgraded, refurbished ZX-81 with a case which is very tidy.

The little man even has new rubber feet to replace the old stinky shoes he used to have!

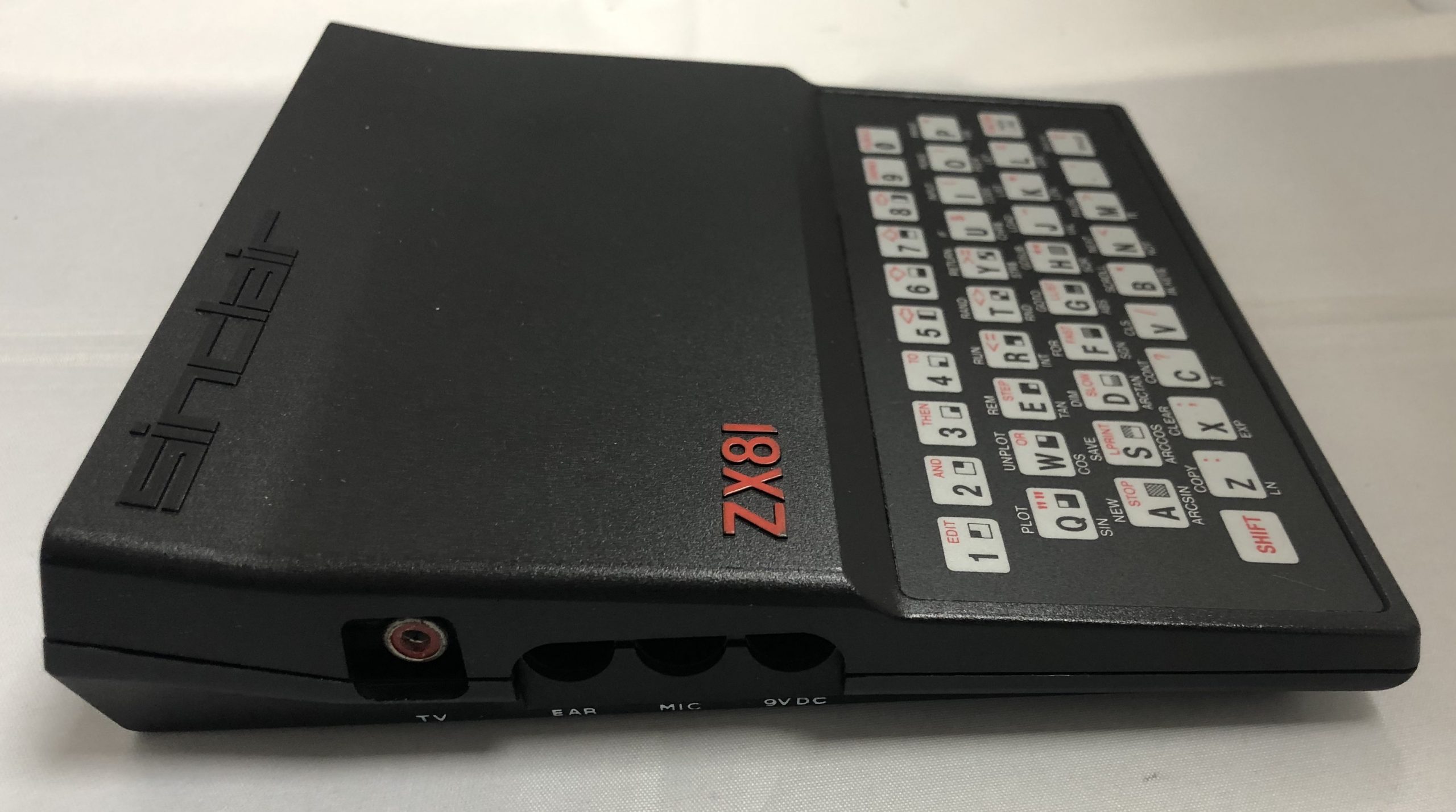

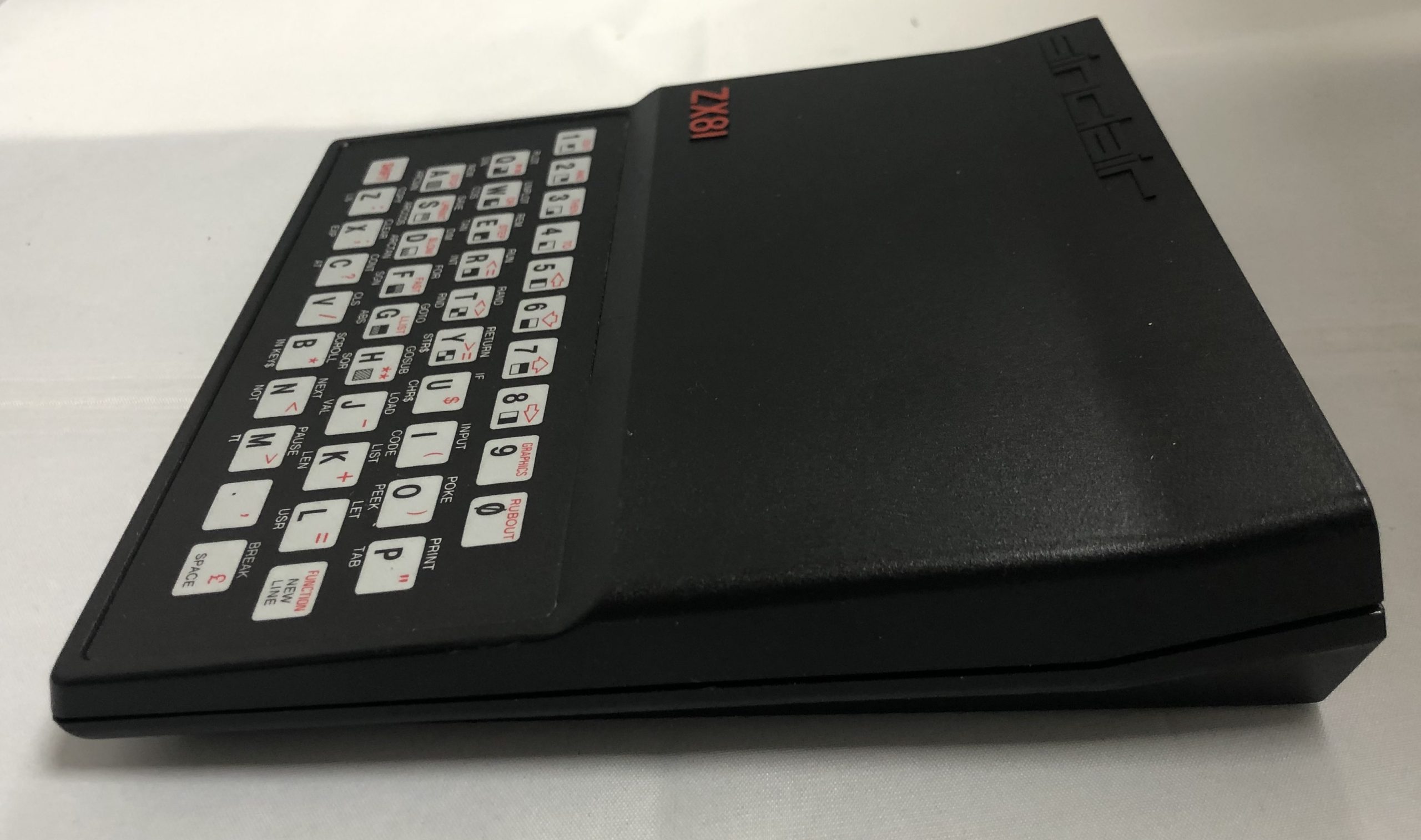

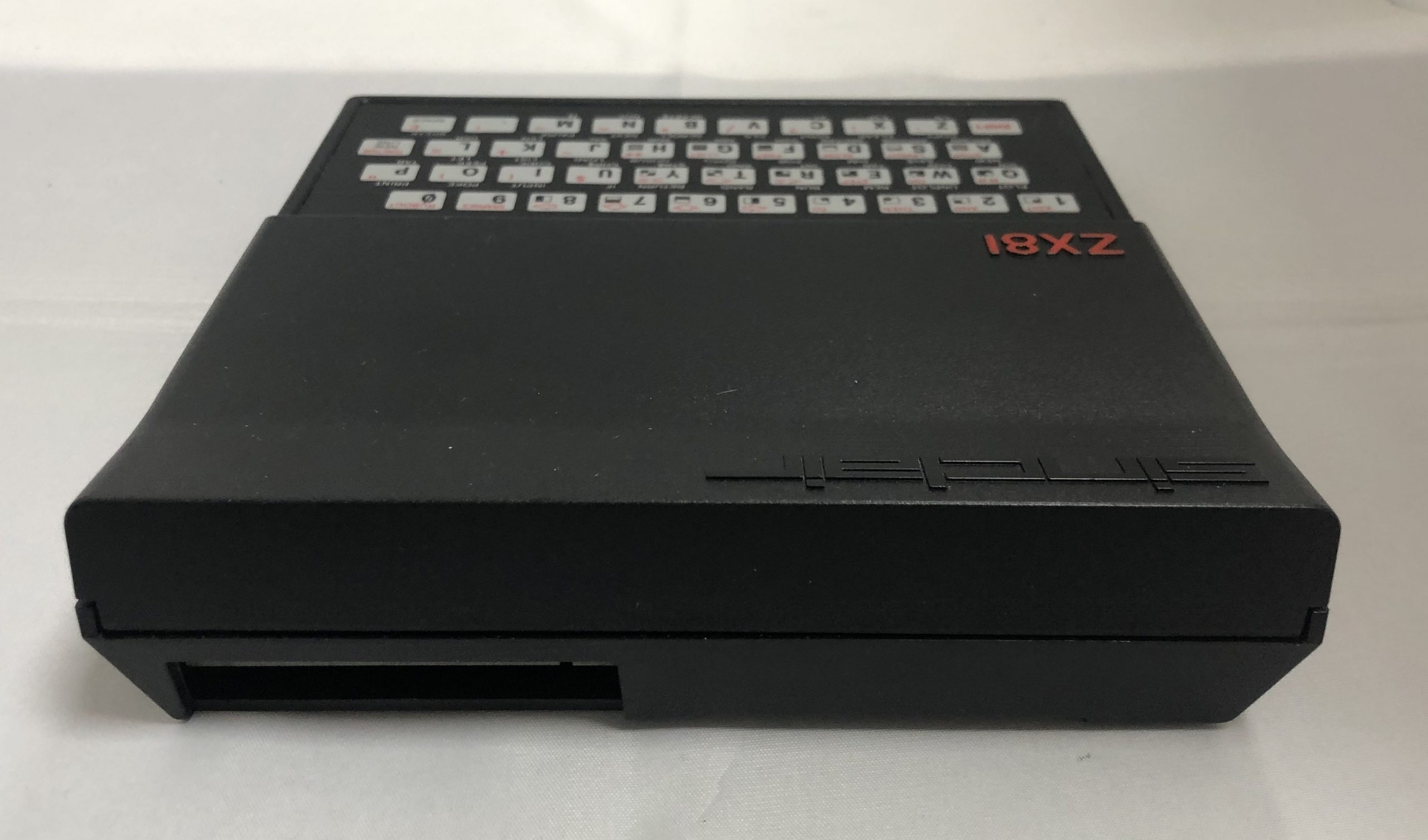

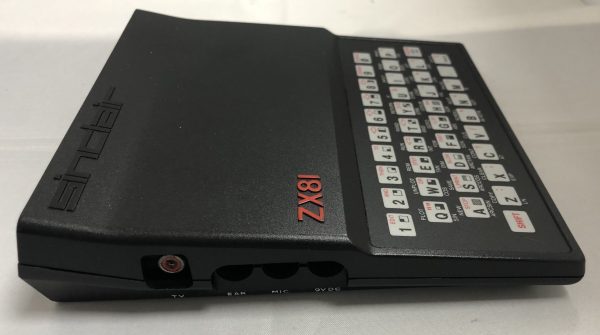

Pictures and screenshots are attached – the actual screen is crystal clear with no lines or patterns on the display.

Also, listed on eBay – https://www.ebay.co.uk/itm/164748134287

Additional information

Weight 2 kg
Dimensions 37 × 22 × 12 cm
