Sinclair ZX81 computer – Boxed, Refurbished & Upgraded to 32K RAM

£129.99

Thanks for looking at our Sinclair ZX81 computer – Refurbished and Upgraded to 32K RAM and HRG (Hi Res Graphics) Ready!

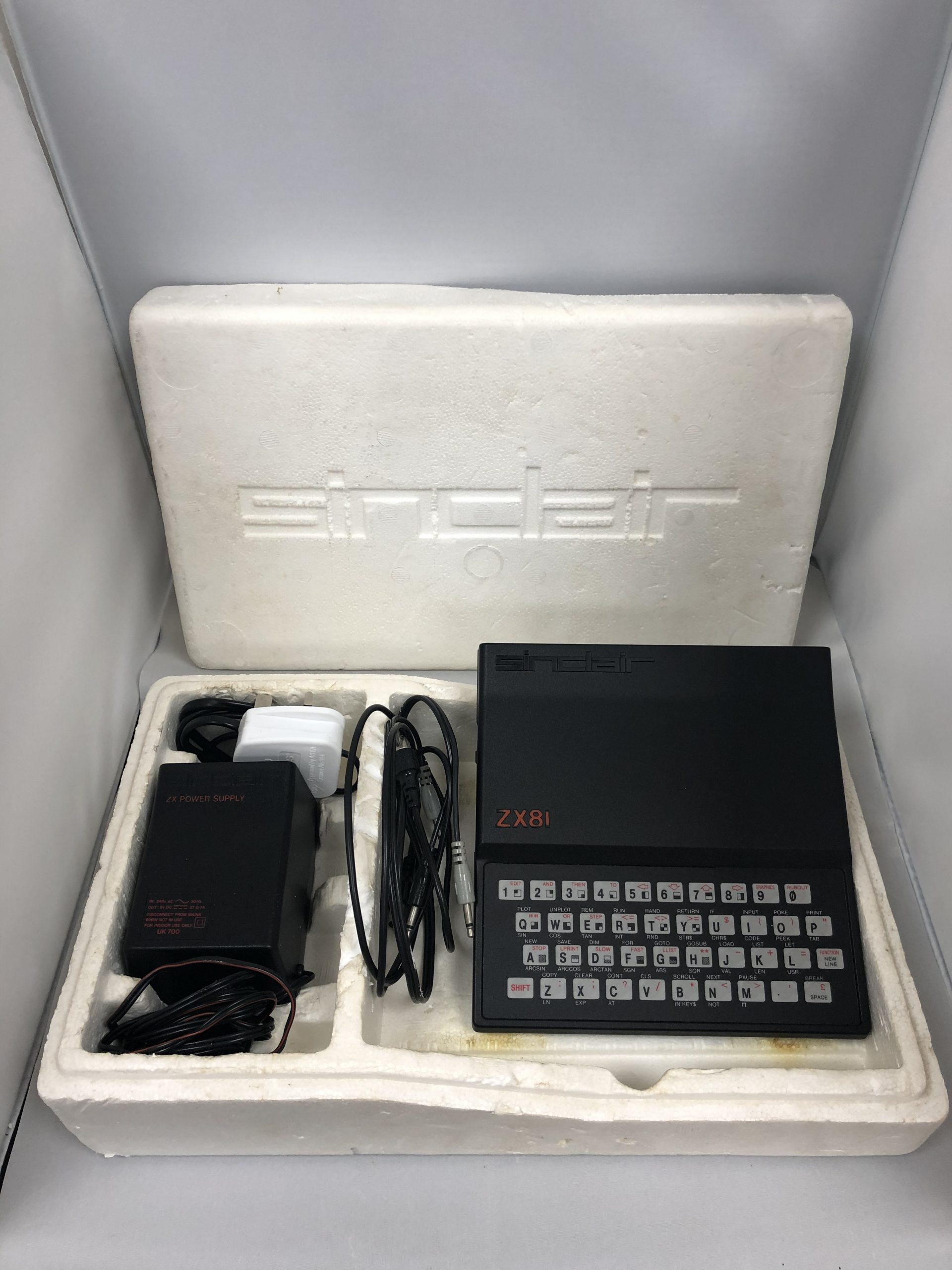

Original Box but no outer cover.

Sold out!

Description

Original Box but no outer cover.

Thanks for looking at our Sinclair ZX81 computer – Refurbished and Upgraded to 32K RAM and HRG (Hi Res Graphics) Ready!

Condition is Seller refurbished.

We’ve performed the following work on this little beast:

  • Replaced the 5 volt regulator with a DC-DC converter which consumes less current and runs much cooler – it means we could also remove the huge heatsink as it’s not needed.

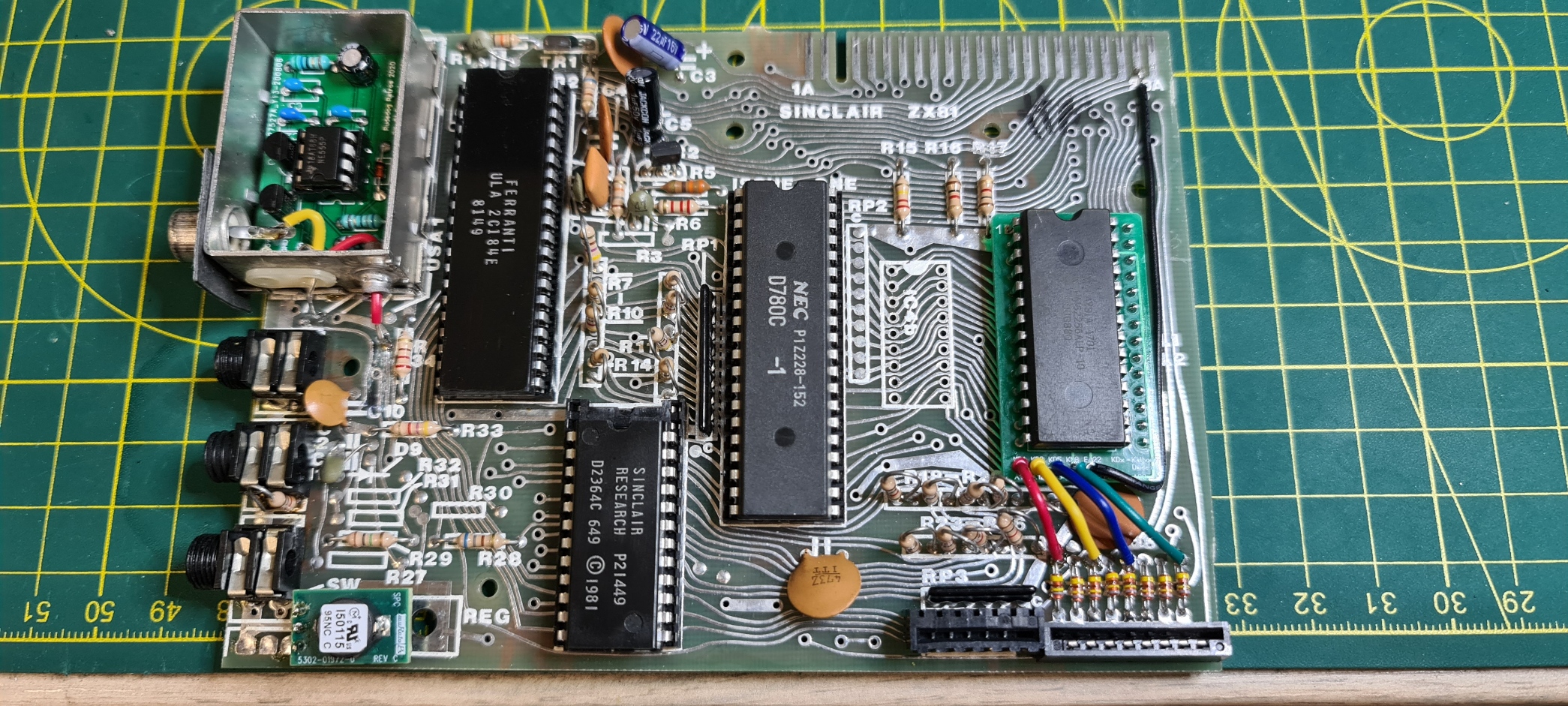

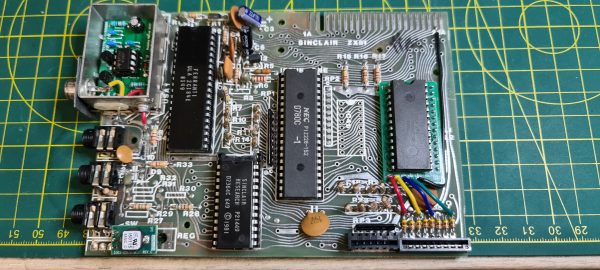

  • Replaced the paltry 1K memory with a 32K SRAM chip using a custom PCB – now the ZX-81 has 32K RAM internally! No more RAM pack wobble – and you get to use hires graphics (HRG) as the custom PCB also enables that.
  • All electrolytic capacitors have been changed to make sure that the ZX-81 has a stable power supply.

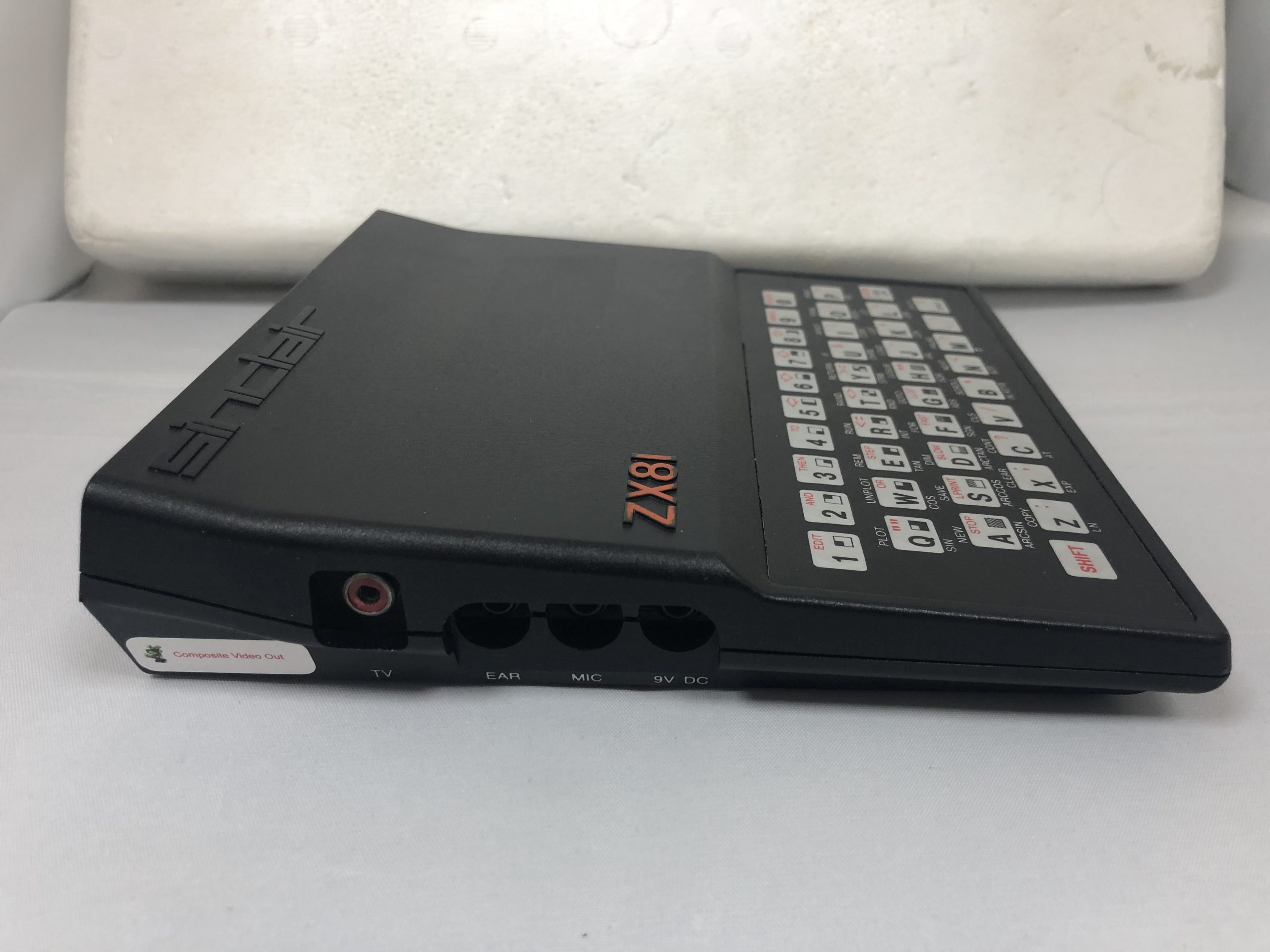

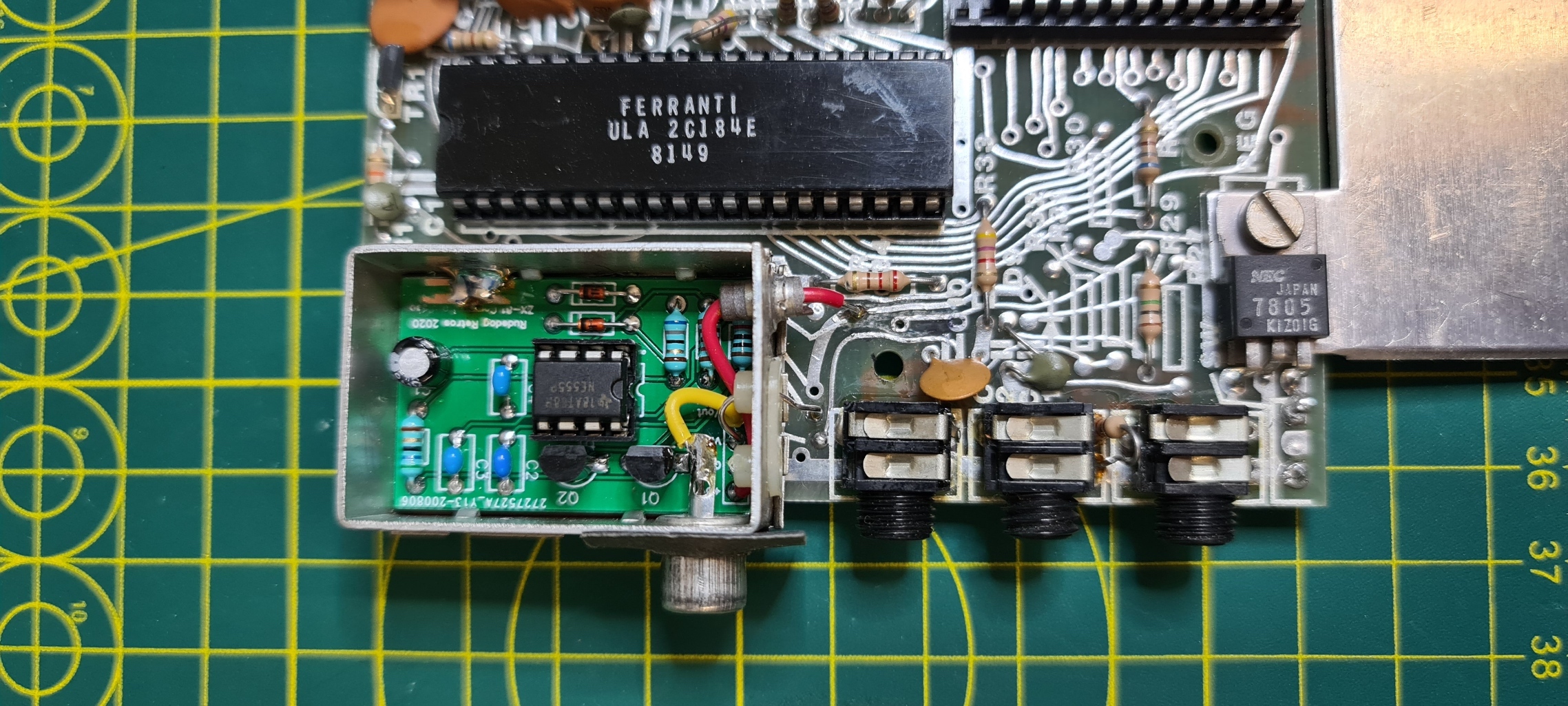

  • The insides of the RF modulator have been swapped out for another custom PCB that gives the ZX-81 excellent composite video output, and produces the needed back porch to allow the ZX81 to give a crystal clear picture on modern TV’s – and it uses the same socket as the RF modulator used to so that we don’t have to modify the case at all.
  • Comes with its original Sinclair ZX-81 power supply and BASIC manual. The power supply has also had its electrolytic capacitors changed.

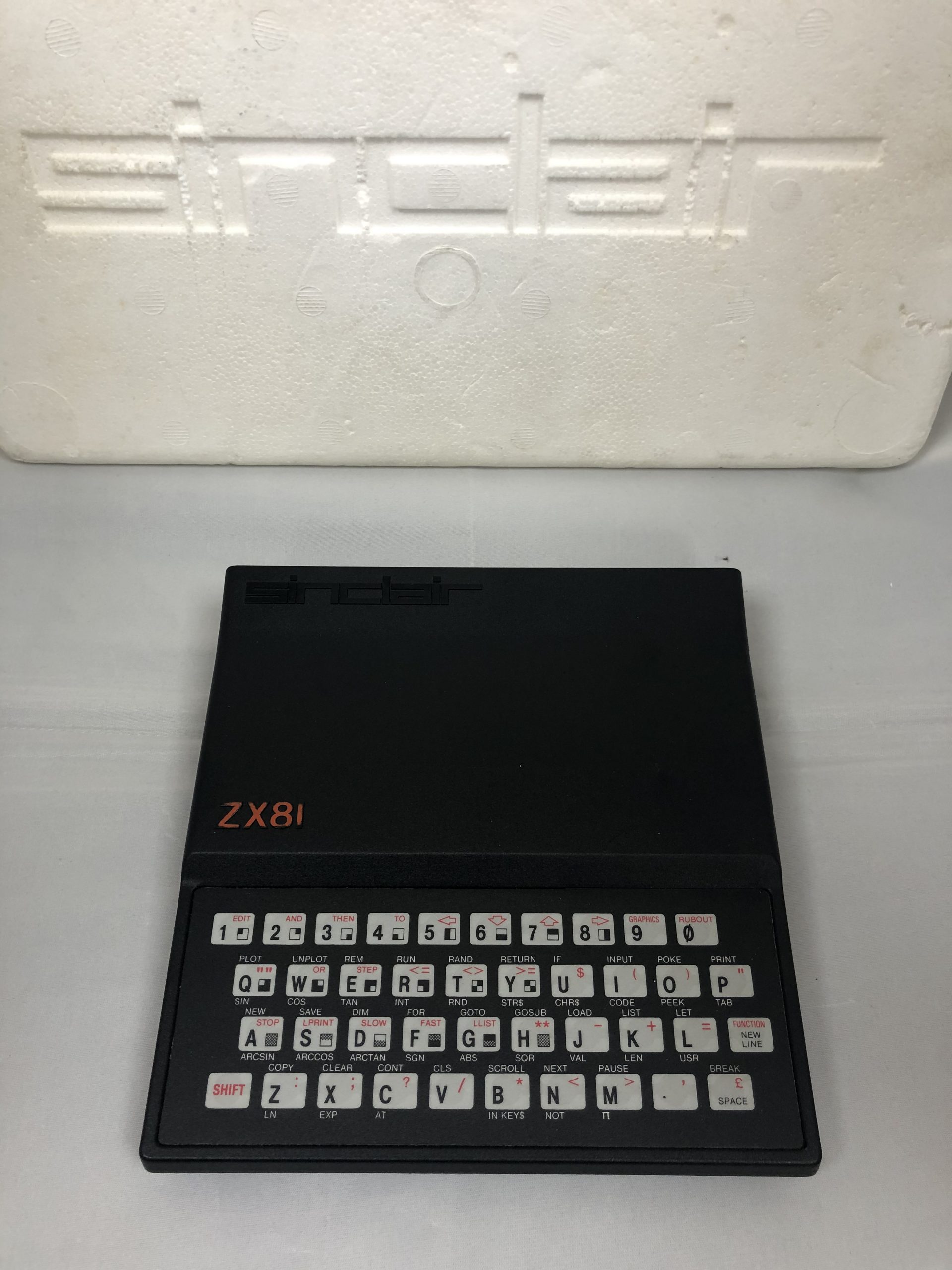

All in all, this is a well upgraded, refurbished ZX-81 with a case which is very tidy.

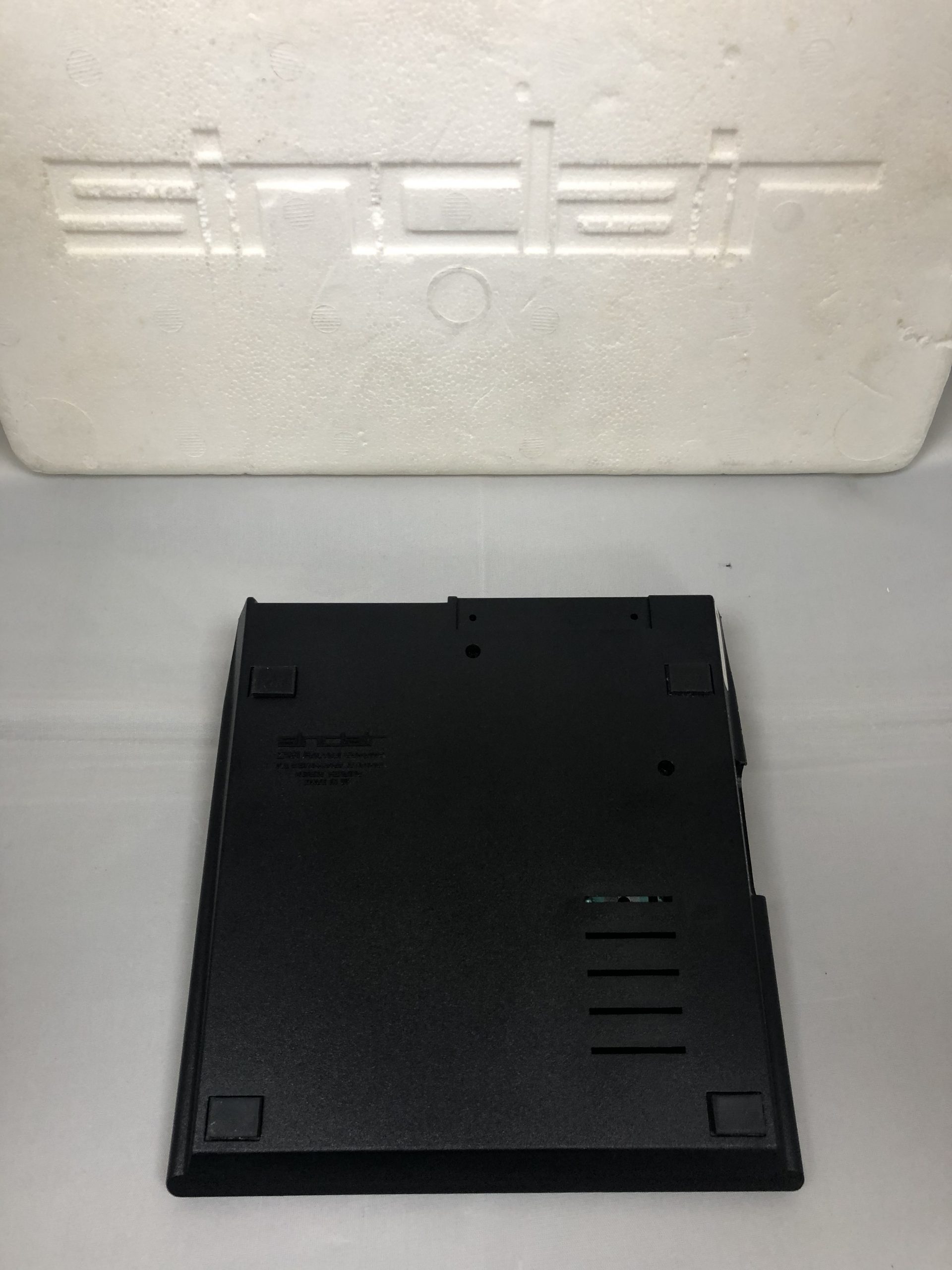

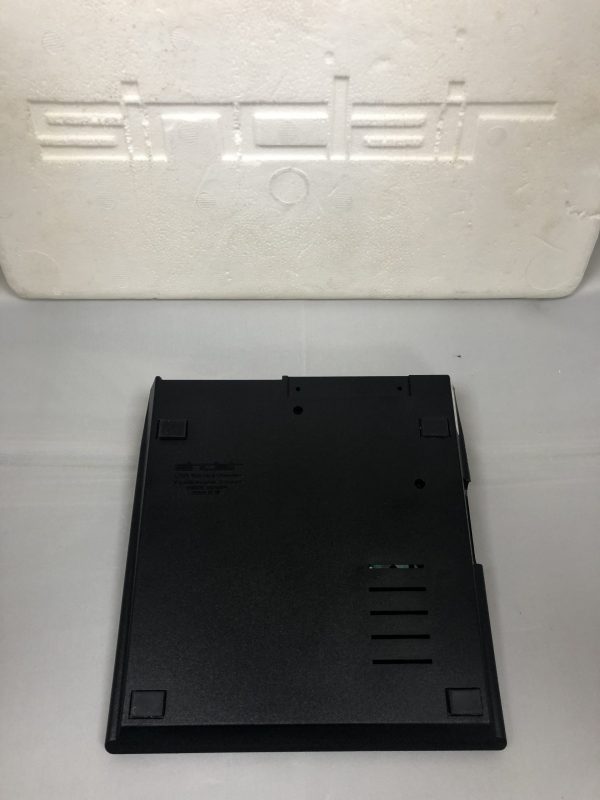

The little man even has new rubber feet to replace the old stinky shoes he used to have!

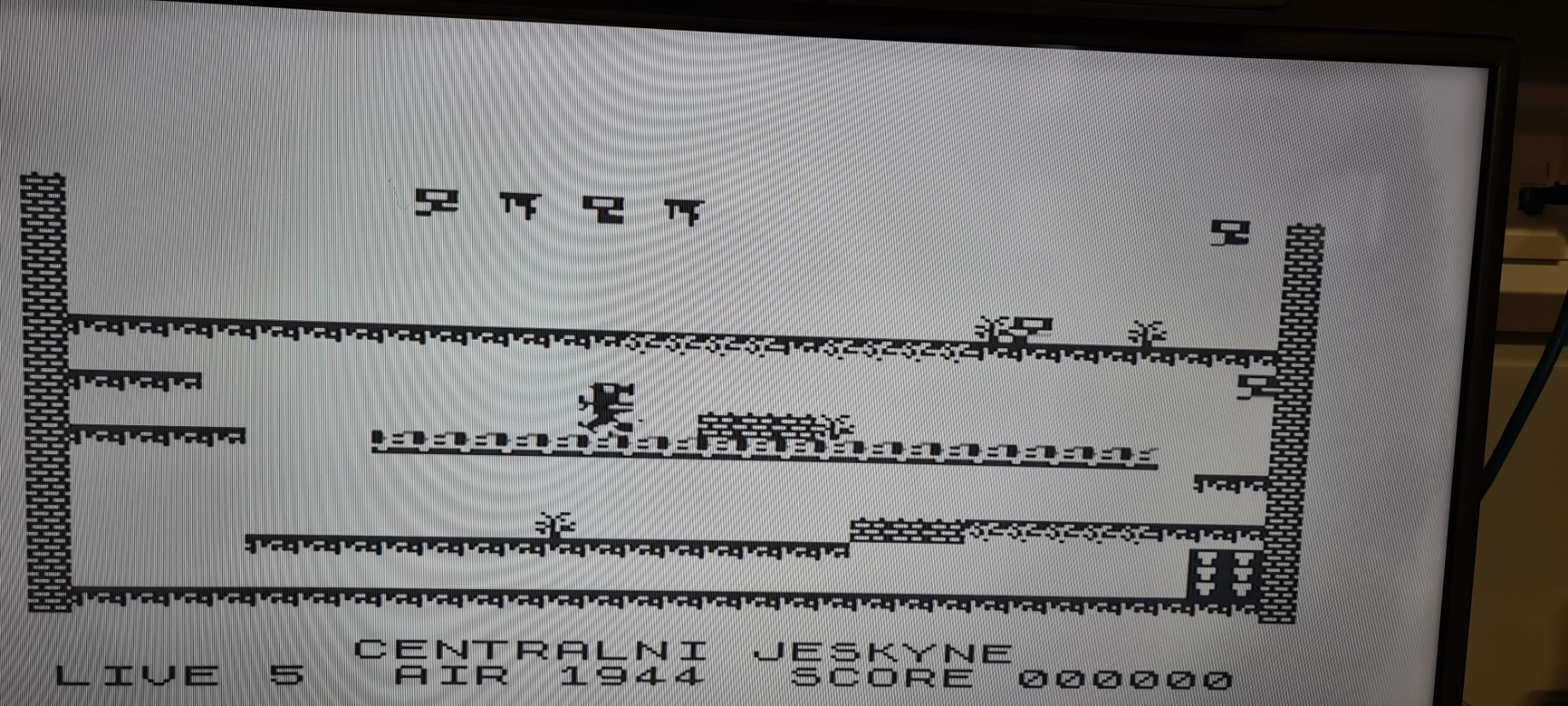

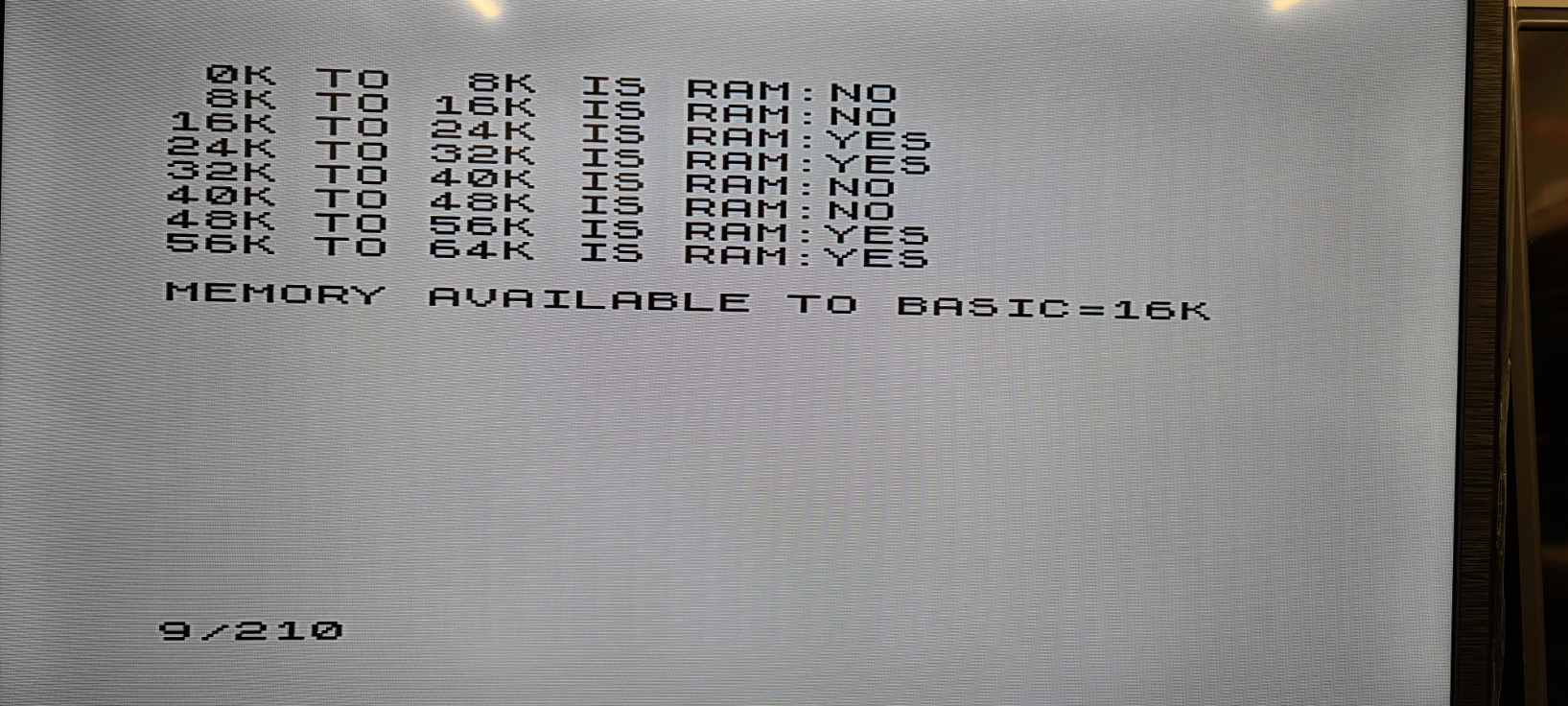

Pictures and screenshots are attached – the shots of Manic Miner Hires have some interference patterns on them due only to my camera – the actual screen is crystal clear with no lines or patterns on the display.

Also, listed on eBay – http://ebay.us/nC3Ibe?cmpnId=5338273189

Additional information

Weight 2 kg
Dimensions 37 × 22 × 12 cm
