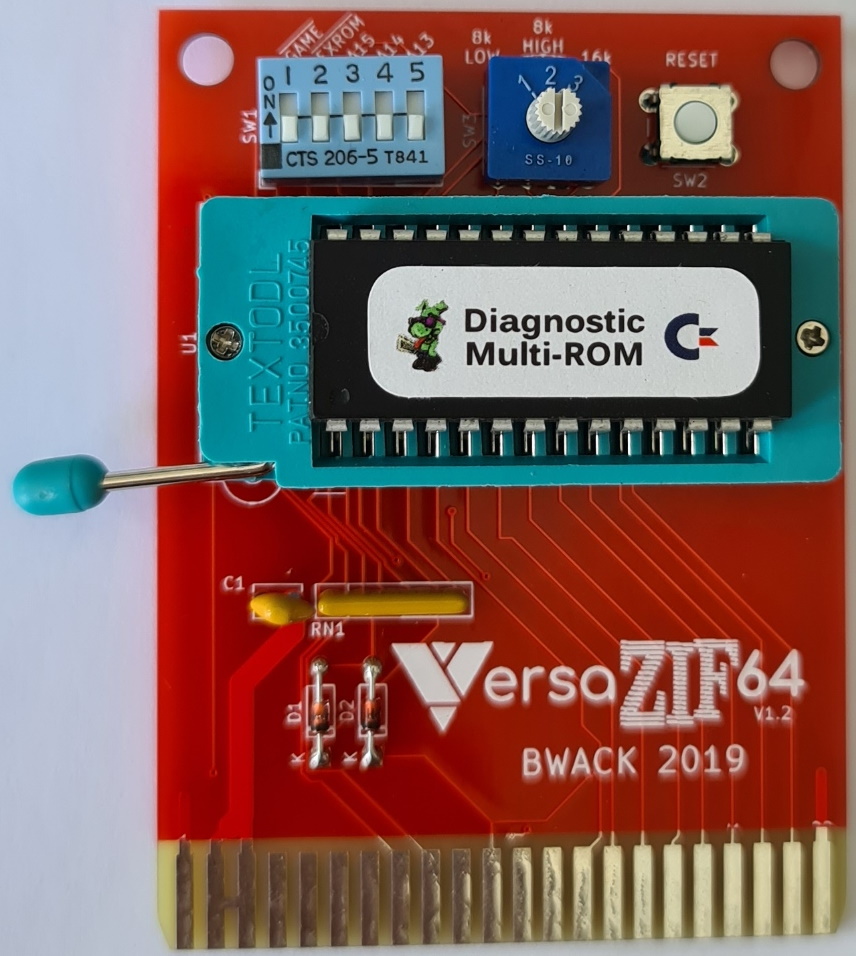

C64/128 Multi-Diagnostic ZIF Cart

£22.99

A Commodore 64/128 Diagnostic cartridge, it is supplied with a ZIF socket so that you can burn your own EEROM and have customised lists of software available when you need it.

In stock

SKU: C64-128-DIAG-ZIF-MC Category: Tags: , , ,

Description

BUILT TO ORDER.

Based on the excellent Zif Cart by Bwack, it is supplied with a ZIF socket so that you can burn your own EEROM and have customised lists of software available when you need it.

The cart supports 8k Low/High ROMs and also 16k ROM’s. It is supplied ready to go with a 512kbit EEROM (which with a suitable programmer you can erase and put your own ROMs on to it). Each ROM is selectable with a set of DIP switches and a single rotary switch. It also has a reset button to reset the machine.

You can select which ROM will load when the machine is powered on by looking at the software selection configuration table below.

DIP Switch SW1 Setting Selector SW3 Position ROM Selected
1 (GAME) 2 (EXROM) 3 (A15) 4 (A14) 5 (A15)
DOWN UP DOWN DOWN DOWN (Position 2) 8k HIGH <C64/128> DeadTest Rev. 781220
UP DOWN DOWN DOWN UP (Position 1) 8k LOW <C64/128> Diagnostic Rev. 586220++ SX64 FIXED
UP DOWN DOWN UP DOWN (Position 1) 8k LOW <C64/128> Commodore 64 Diagnose & Test by RossMoeller 1988
UP UP DOWN UP UP (Position 1) 8k LOW <C128/128D> Diagnostic Rev 785260
UP DOWN UP DOWN DOWN (Position 1) 8k LOW <C64/128> Trilogic Doctor 64
UP DOWN UP DOWN UP (Position 1) 8k LOW <C64/128> C64 Final Test
UP DOWN UP UP DOWN (Position 1) 8k LOW <C64/128> C64 Diagnostic rev 4.1.1
UP DOWN UP UP UP (Position 1) 8k LOW <C64/128> 1541 Diag/Test WorldOfJani

Additional information

Weight 0.035 kg
Dimensions 19 × 13 × 2.5 cm
